In a vacuum pump system, the oil filter is not merely an accessory. On the contrary, it acts as a “gatekeeper” protecting expensive internal mechanical components. If this shield is breached or the oil becomes contaminated, the result is often the total destruction of the vanes and rotor.
1. Technical Analysis: Why do Lack of Filters and Dirty Oil Cause Vane Failure?
Vacuum pumps operate with extremely tight clearances between the vanes, the rotor, and the pump chamber. However, when suction filters are missing or oil deteriorates, dangerous agents will infiltrate the system:
-
Foreign Objects and Solid Residue: Metal fragments or welding spatter from the piping fall directly into the pump chamber.
-
Abrasive Mixtures: Dust accumulating in the oil over time creates a highly abrasive mixture.
-

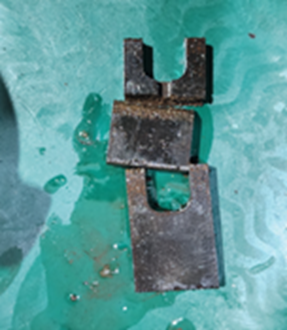

Mechanical Consequences: Foreign objects get trapped between the high-speed rotating vanes and the chamber wall. Consequently, the resulting counterforce snaps the vanes instantly. Furthermore, these fragments lead to rotor jamming and severe scoring of the pump chamber interior.
2. Common Mistakes Leading to Failure
Why do systems still fail even with filters installed? In fact, ULVAC has identified the following primary causes:
-
Lack of Protective Filters: Businesses often assume a clean environment and skip the initial suction filter.
-
Damaged Filter Elements: Overdue filter elements become brittle or tear. At this point, the filter debris itself becomes the foreign object that destroys the pump.
-
Water or Impurity Contamination: Failure to monitor oil condition leads to decreased viscosity. Therefore, the pump loses its effective lubrication capability.
3. Total Protection Solution: Suction Filters & Taisei Giken
To ensure long-lasting vane durability, you need a dual-layer protection process:
External Protection: Suction Filters
-
First and foremost, install filters with the correct mesh size for your specific ULVAC pump model.
-
Simultaneously, clean the piping system before operation to remove all solid residues.
Internal Protection: Taisei Giken Oil Cleaner
Utilizing a Taisei Giken bypass oil cleaner is the ultimate solution:
-
Water and Gas Separation: The device removes moisture and dissolved impurities. As a result, it prevents oil emulsification, which destroys lubrication properties.
-
Oil Quality Restoration: The cleaner keeps the oil as clean as new. Consequently, the vanes slide smoothly, eliminating the risk of jamming or breakage due to frictional heat.
-
Cost Efficiency: Instead of passive periodic oil changes, this solution extends the lifespan of both the oil and components by several times.
