In oil-sealed rotary vane vacuum pumps, the vane is the most critical and sensitive component. Once a vane breaks, it not only causes a loss of vacuum pressure but can also destroy the entire pump chamber within seconds.
At ULVAC, we have found that most vane failures are not caused by manufacturing defects. Instead, they originate from improper lubrication oil usage.
1. Why does “dirty or incorrect oil” cause vane failure?
The vane slides at high speed inside the rotor slot and stays in constant contact with the pump chamber wall. To operate smoothly, it requires a perfect lubrication film.
Problems occur when oil is used incorrectly:
-
Incorrect viscosity:
Oil that is too thin cannot lubricate properly. Oil that is too thick increases resistance. -
Lack of regular oil changes:
Oil oxidizes over time and forms deposits. Hard particles stick to the vane slots. -
No operating hour control:
Oil loses its protective properties. Pump temperature rises rapidly.
Result:
The vane may get stuck in the slot. Excessive friction makes the material brittle and leads to breakage.

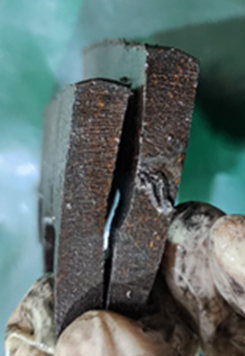

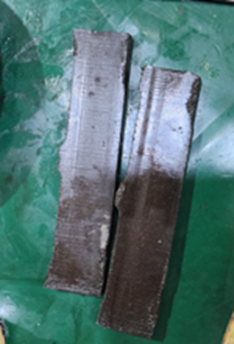

2. The “disaster chain” when a vane breaks
When a vane breaks, sharp fragments can cause severe damage:
-
Scoring the pump chamber (stator):
Creates deep scratches that cannot be repaired. -
Rotor seizure:
Causes sudden overload and may burn out the motor. -
Complete kit failure:
Repair costs can be 10–20 times higher than routine oil maintenance.
3. Golden rules to protect your vanes
To prevent these risks, follow these three key principles:
-
Use the recommended oil only:
Each pump model is designed for a specific oil type. -
Change oil based on operating hours:
Do not wait until the oil turns dark. -
Check oil daily:
A quick visual check of color and viscosity takes only a few minutes.
ULVAC Recommendation
If your pump shows any of the following signs:
-
Unusual noise
-
Strong vibration
-
Abnormal temperature increase
Stop the pump immediately. These may indicate severe vane wear.
